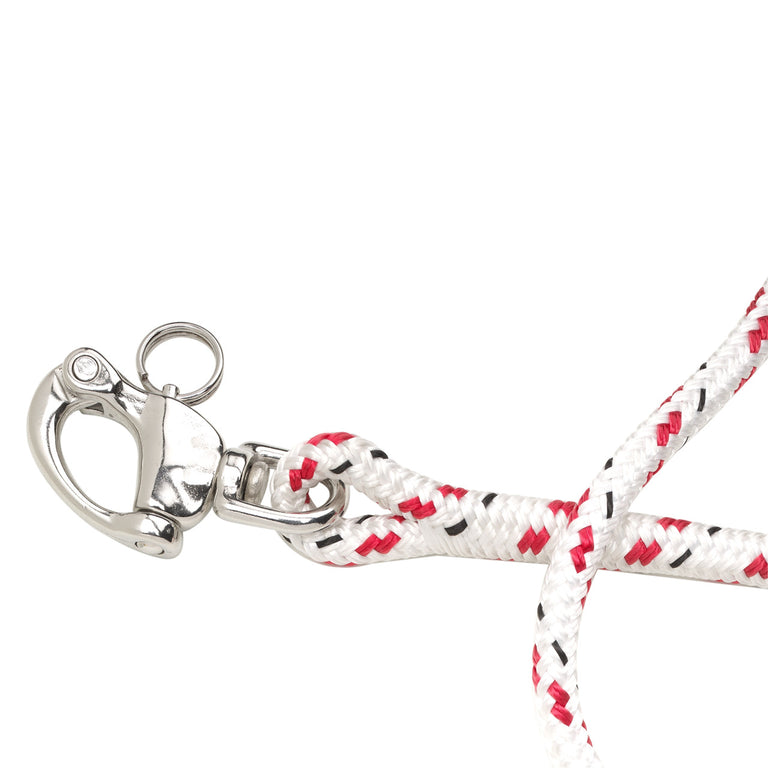

Spinnaker Halyard - 3/8" x 90 ft Dacron Rope with 316 SS Swivel Shackle - Red Tracer
Professional Spinnaker Halyard - 3/8" Dacron Rope with 316 Stainless Steel Swivel Shackle
U.S. Rigging Supply's spinnaker halyard features premium 3/8" Dacron double braided rope professionally hand-spliced to a marine-grade 316 stainless steel swivel shackle. Designed for reliable performance in demanding sailing conditions, this 90-foot halyard combines durability, low stretch, and smooth handling for optimal spinnaker control.
Key Features:
- Premium Dacron Double Braid Rope: 3/8" diameter, long-lasting construction with excellent UV resistance
- 316 Stainless Steel Swivel Shackle: 1-5/16" marine-grade swivel shackle prevents line twist
- Professional Hand-Spliced: Expert splicing ensures maximum strength and reliability
- Red Tracer: High-visibility red tracer for easy line identification
- Low Stretch Performance: Dacron construction provides minimal stretch for precise sail control
- 90-Foot Length: Suitable for a wide range of sailboat sizes
Specifications:
- Rope Diameter: 3/8"
- Length: 90 feet
- Material: Dacron double braided rope
- Shackle: 316 Stainless Steel Swivel, 1-5/16"
- Color: Red Tracer
- Weight: 4.57 lbs
- SKU: H-SP12-90R

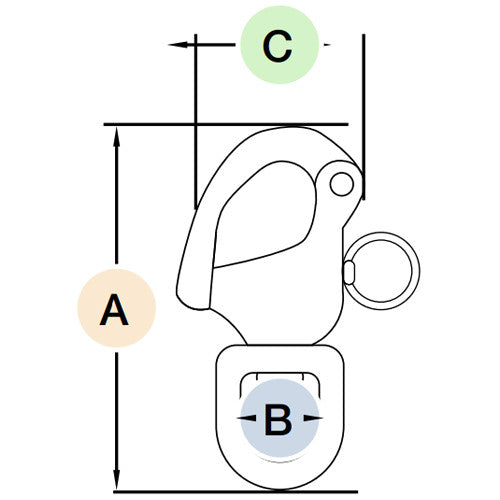

Shackle Specifications:
| SKU | Size | A | B | C | WLL | |
|---|---|---|---|---|---|---|
| K-6-1 | 1 | 2-316" | 1/2" | 1-5/16" | 480 lbs | |
| K-6-2 | 2 | 3-3/8" | 9/16" | 1-5/8" | 880 lbs |
*WLL allows a 5:1 design factor.
Applications:
Specifically designed for spinnaker and asymmetric spinnaker applications on cruising and racing sailboats. The swivel shackle prevents line twist during spinnaker sets and douses, while the Dacron double braid construction provides the perfect balance of strength, durability, and handling characteristics for downwind sailing.
Why Dacron Double Braid?
Dacron (polyester) double braid rope is the gold standard for sailboat halyards due to its excellent combination of low stretch, UV resistance, durability, and cost-effectiveness. The double braid construction provides superior strength and maintains consistent performance over time while handling smoothly through blocks and clutches.
Professional Hand-Splicing:
Each halyard is professionally hand-spliced by experienced riggers to ensure maximum strength at the connection point. Hand-splicing provides superior strength compared to mechanical connections and creates a smooth, low-profile attachment that runs easily through blocks and sheaves.
Swivel Shackle Advantage:
The 316 stainless steel swivel shackle is a critical feature for spinnaker halyards, allowing the line to rotate freely and preventing dangerous twists during spinnaker operations. This ensures smooth sets, jibes, and douses while extending the life of your halyard.
Care and Maintenance:
Rinse with fresh water after saltwater exposure. Inspect splices and shackle regularly for wear. Lubricate the swivel shackle periodically with marine-grade lubricant. Store in a cool, dry place when not in use to maximize UV resistance and rope life.
