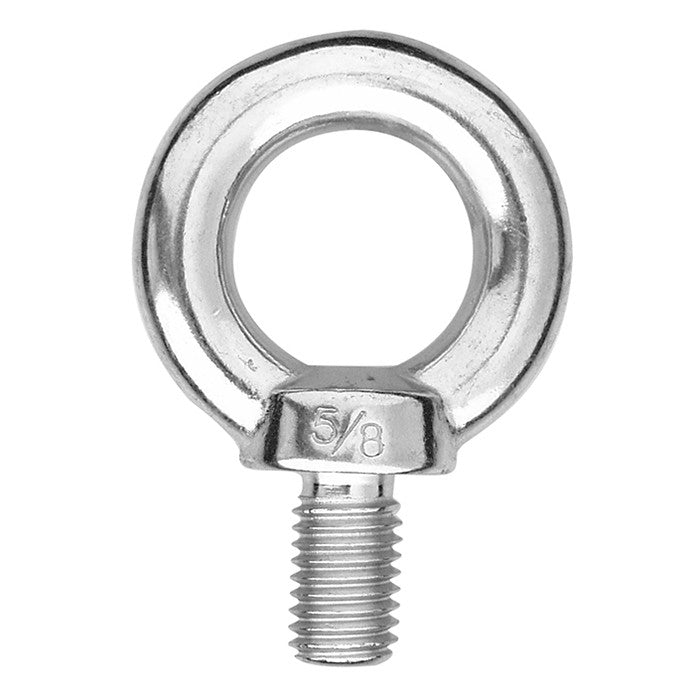

316 Stainless Steel Eye Bolt
$1.99
Regular price
Unit price
Translation missing: en.general.accessibility.unit_price_separator
Availability:
In stock
SKU:
K-38-08
An eye bolt is made with a loop at one end and used to securely attach a securing eye to a structure in order to allow ropes or cables to be tied to it.

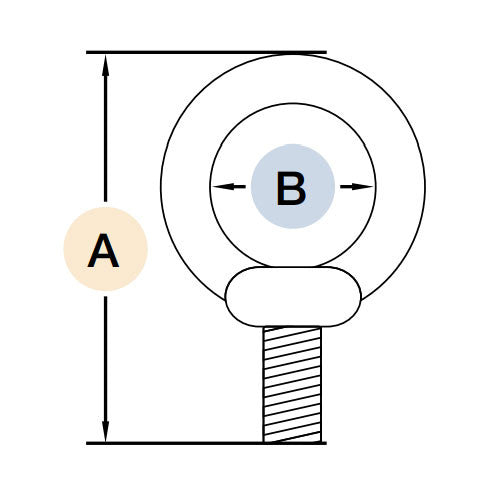

| SKU | Diameter | A | øB | WLL |
|---|---|---|---|---|
| K-38-08 | 1/4" | 38 mm | 16.30 mm | 400 lbs |
| K-38-10 | 5/16" | 46.80 mm | 20 mm | 500 lbs |
| K-38-12 | 3/8" | 59 mm | 25 mm | 1,000 lbs |
| K-38-16 | 1/2" | 74 mm | 30 mm | 1,400 lbs |
| K-38-20 | 5/8" | 86.80 mm | 35 mm | 3,000 lbs |
WLL allows a 5:1 design factor.
