7x7 Stainless Steel Wire Rope - MIL-DTL 83420 Aircraft Cable
Military-Grade 7x7 Stainless Steel Wire Rope
Meet the highest standards of quality and performance with our 7x7 stainless steel wire rope manufactured to MIL-DTL 83420 military specifications. This aircraft-grade cable delivers exceptional flexibility, strength, and corrosion resistance for demanding applications where reliability is non-negotiable.
| SKU | Diameter | WLL | Break Strength | QTY |
|---|---|---|---|---|
| W-13-101MS | 3/64" | 54 lbs | 270 lbs | 300' |
| W-13-102MS | 1/16" | 96 lbs | 480 lbs | 250' |
| W-13-103MS | 3/32" | 184 lbs | 920 lbs | 150' |
| W-13-104MS | 1/8" | 340 lbs | 1,700 lbs | 150' |
| W-13-105MS | 5/32" | 520 lbs | 2,600 lbs | 150' |
| W-13-106MS | 3/16" | 740 lbs | 3,700 lbs | 150' |
| W-13-108MS | 1/4" | 1,220 lbs | 6,100 lbs | 150' |
*WLL is approximately 20% of average break strength which allows a 5:1 design factor.
Key Features:
- MIL-DTL 83420 Certified: Manufactured to strict military specifications for guaranteed quality and performance

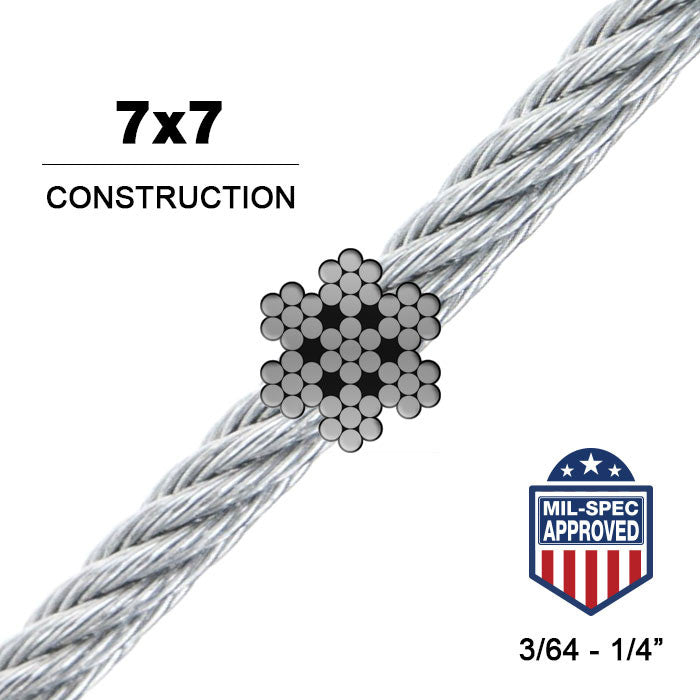

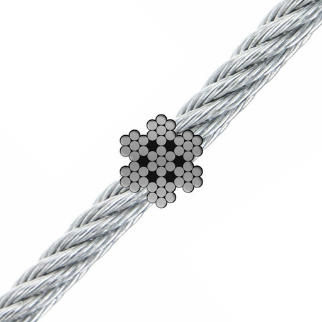

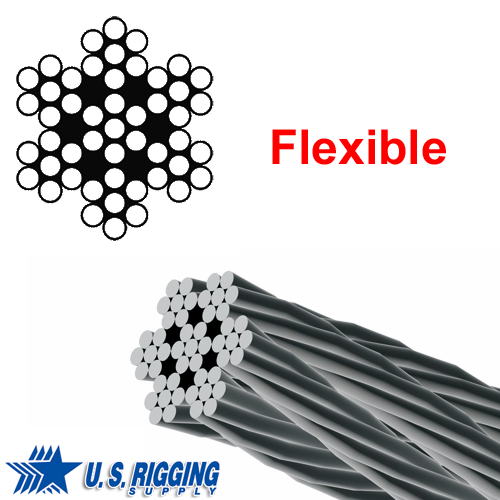

- 7x7 Construction: Flexible strand design provides excellent handling characteristics and strength
- Stainless Steel Core: Superior corrosion resistance for marine, coastal, and harsh environments
- Aircraft-Grade Quality: Trusted for aviation, aerospace, and critical safety applications
- Swage-Right Manufacturing: Premium quality wire rope built to exacting military standards
Ideal Applications:
Perfect for aircraft control cables, marine rigging, safety cables, guy wires, architectural installations, and any application requiring military-grade reliability and corrosion resistance. The 7x7 construction offers superior flexibility compared to 1x19 while maintaining excellent strength characteristics.
Choose wire rope that meets the most demanding military specifications for your critical applications.
