Composite Load Pro High Force Electrical Pulling Rope - 1/4" to 1" - 300ft and 600ft
$99.98
Regular price
Unit price
Translation missing: en.general.accessibility.unit_price_separator
Availability:
In stock
SKU:
4N-080-03S
Premium Composite Pulling Rope for Heavy-Duty Applications
The Composite Load Pro™ High Force Pulling Rope delivers exceptional performance where it matters most. Engineered with shock absorption properties similar to nylon and tensile strength exceeding both nylon and polyester, this versatile rope provides dependable performance across utility, industrial, and marine applications.
Technical Specifications
| SKU | Diameter | Tensile Strength (lb) | Weight Per 100FT (lb) |
|---|---|---|---|
| 4N-080 | 1/4" | 2,700 | 1.9 |
| 4N-120 | 3/8" | 5,900 | 4.5 |
| 4N-160 | 1/2" | 10,000 | 7.7 |
| 4N-180 | 9/16" | 12,200 | 9.6 |
| 4N-200 | 5/8" | 16,000 | 13.1 |
| 4N-240 | 3/4" | 25,000 | 17.2 |
| 4N-280 | 7/8" | 35,000 | 22.5 |
| 4N-320 | 1" | 45,000 | 29.7 |
| 4N-360 | 1 1/8" | 50,000 | 37.6 |
| 4N-400 | 1 1/4" | 58,500 | 45.6 |
Key Benefits
- Superior Strength-to-Weight Ratio – High tensile strength composite construction outperforms traditional nylon and polyester
- Shock Absorbent – Reduces dynamic loading and protects equipment during pulling operations
- Exceptional Durability – Abrasion-resistant design extends service life in demanding environments
- Balanced Performance – Even torque distribution prevents kinking and twisting under load
- Optional Urethane Coating – Penetrates outer cover fibers for enhanced core protection and increased abrasion resistance
Ideal Applications
- Cable pulling and stringing operations
- Utility transmission line installation
- Winch lines for industrial and marine use
- Heavy-duty lifting applications
- Electrical and telecommunications infrastructure
Product Features

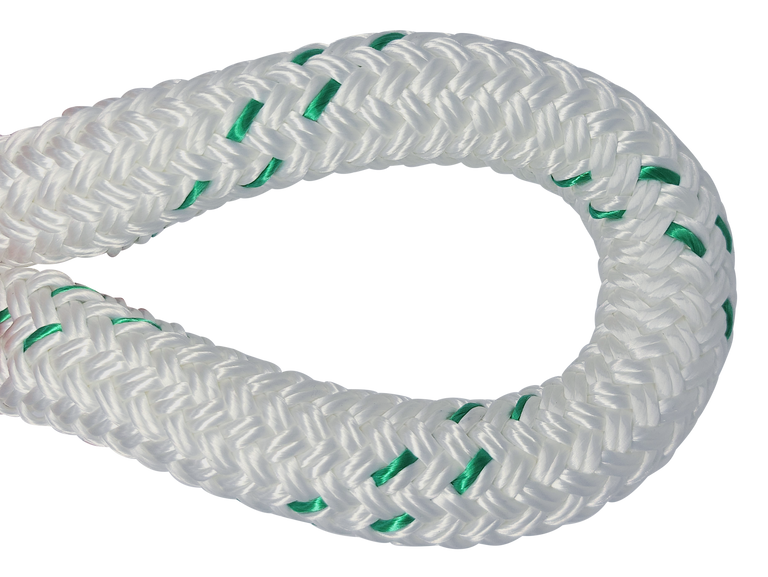

- Spools include 6" eye splice at each end with integrated chafe guard

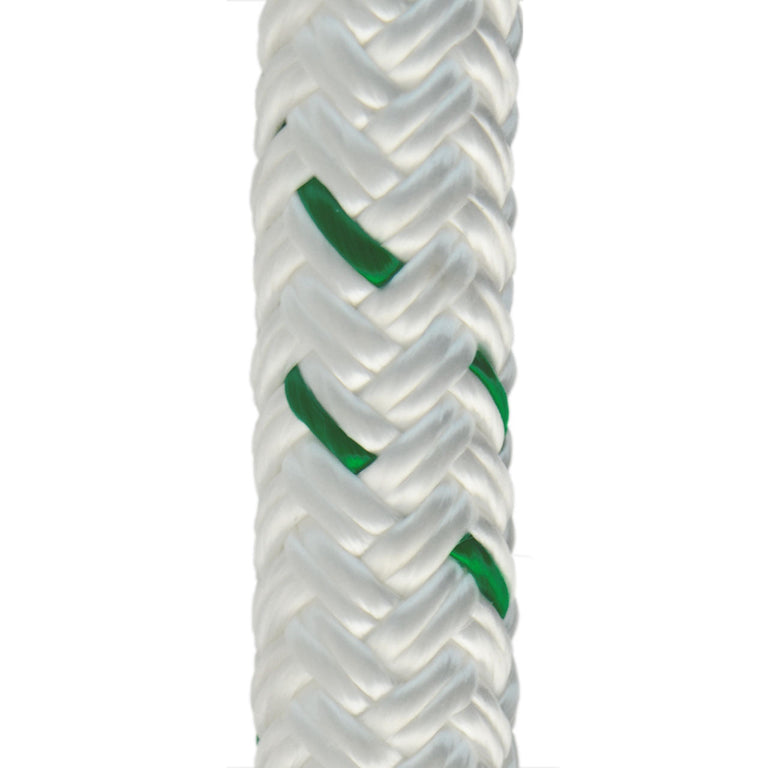

- Double braid construction for maximum strength and flexibility
- Urethane coating available upon request for extreme-duty applications
- Manufactured by Pelican Rope to rigorous quality standards
Need help selecting the right diameter? Contact our rigging specialists for application-specific recommendations based on your tensile strength requirements and working conditions.
