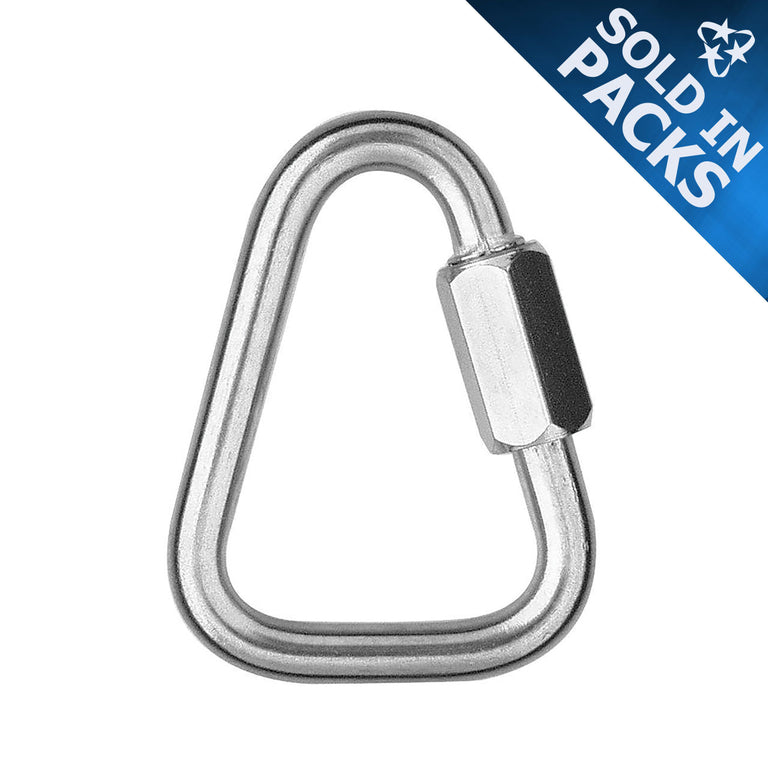

304 Stainless Steel Delta Links - (SOLD IN PACKS)
Free shipping on all orders of $150, Under 50LBS
Secured Payment:
Length : 0.31
Material : Stainless Steel
Type : Delta Links

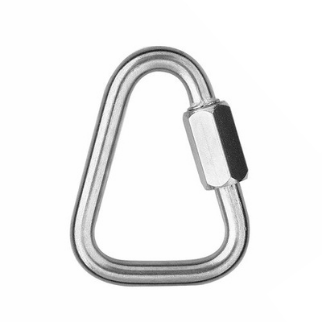

Delta links, crafted from durable 304 stainless steel, provide a reliable and efficient method to quickly secure chains together. Their distinctive triangular shape makes them especially suitable for use with webbing, offering enhanced stability and load distribution. Installation is straightforward: insert the chain ends into the link and firmly strike down on the threaded sleeve to lock it in place. This design not only ensures a secure connection but also allows for easy disassembly when needed, making these links versatile for various rigging and lifting applications where strength and convenience are paramount. Sold in packs for your operational needs.

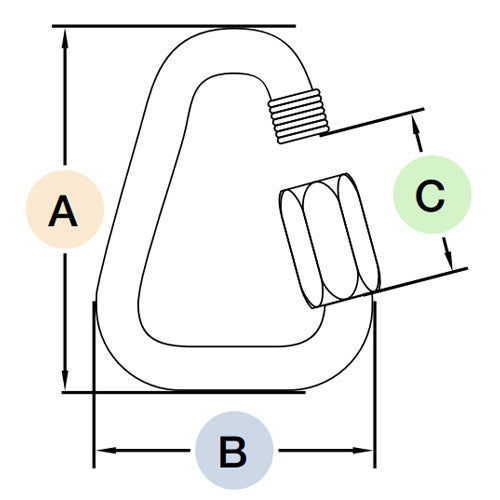

SKU | Size | A | B | C | WLL | Qty/Pkg |
---|---|---|---|---|---|---|
LS-DL-06-10K | 3/16" | 1-7/8" | 1-9/16" | 1/4" | 710 lbs | 10 |
LS-DL-08-10K | 1/4" | 2-3/16" |
1-7/8" |
5/16" | 990 lbs | 10 |
LS-DL-10-10K | 5/16" | 2-7/8" | 2-3/16" | 3/8" | 1,690 lbs | 10 |
LS-DL-12-5K | 3/8" | 3-7-16" | 2-5/8" | 1/2" | 2,750 lbs | 5 |
*C measurement when open. **WLL allows a 5:1 design factor.
