316 SS Carbine Snaps w/ Eyelet - (SOLD IN PACKS)
$37.75
Regular price
Unit price
Translation missing: en.general.accessibility.unit_price_separator
Availability:
In stock
SKU:
K-50-06-20K

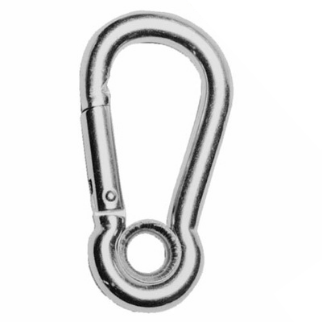

Crafted from premium 316 stainless steel, these Carbine Snap Hooks with Eyelets offer exceptional corrosion resistance and strength, ideal for demanding marine and industrial applications. Featuring a 5:1 working load limit (WLL), the WLL is set at 20% of the hook’s ultimate breaking strength, ensuring a reliable safety margin under load. This rating reflects the maximum load that can be safely applied without risk of shock loading. Users should conduct a thorough evaluation of their specific conditions to determine the appropriate load, ensuring optimal performance and safety. Sold in packs for convenience and consistent quality.

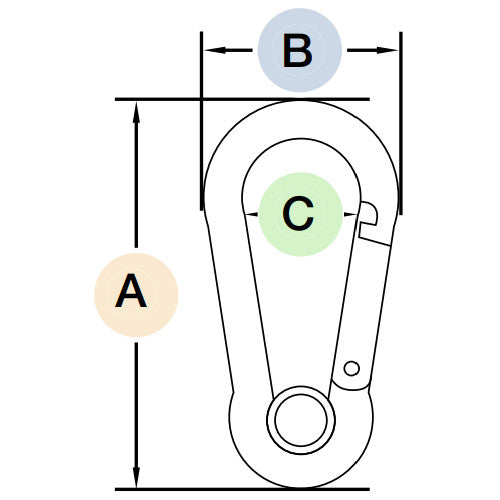

| SKU | Size | A | B | C | WLL | Qty/Pkg |
|---|---|---|---|---|---|---|
| K-50-06-20K | 3/16" | 2" | 1-1/16" | 1/4" | 90 lbs | 20 |
| K-50-08-20K | 1/4" | 2-3/8" | 1-3/16" | 5/16" | 120 lbs | 20 |
| K-50-10-10K | 5/16" | 3-1/8" | 1-9/16" | 3/8" | 220 lbs | 10 |
| K-50-12-5K | 3/8" | 3-15/16" | 2" | 1/2" | 320 lbs | 5 |
| K-50-16-5K | 1/2" | 5-1/2" | 2-1/2" | 13/16" | 400 lbs | 5 |
*C measurement when open. **WLL allows a 5:1 design factor.
