Trigger Snap - Tactical 316 Stainless Steel - 5/8" - Black
Free shipping on all orders of $150, Under 50LBS
Secured Payment:
Height : 6
Length : 0.75
Material : Stainless Steel
Product Upcean : 753625215150
Quantity Per Package : 1
Size : 5/8”
Style : Swivel Eye
Type : Trigger Snaps
Width : 4
This Trigger Snap is made of 316 Stainless Steel, providing excellent corrosion resistance. The Snap has a Swivel Eye and is rated at 5 to 1 WLL, equivalent to 20% of its Ultimate Breaking Strength. It is designed for use with ropes, chains, leashes, reigns, and in marine and industrial/rigging settings. For optimal use, consult a competent individual to determine the maximum load allowed based on the conditions.

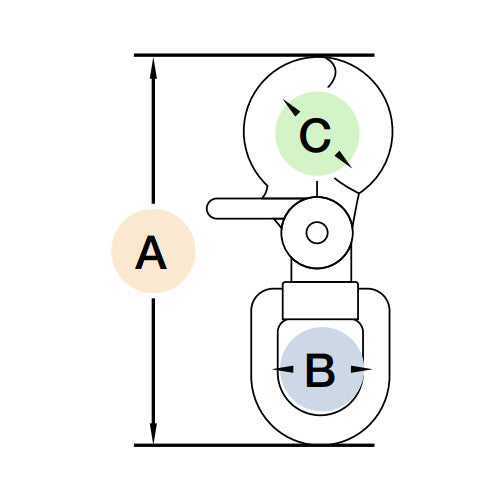

SKU | Size | A | B | C | WLL | Qty/Pkg |
---|---|---|---|---|---|---|
K-19-20 | 5/8" | 2-9/16" | 5/8" | 7/16" | 80 lbs | 1 |
*WLL allows a 5:1 design factor.
