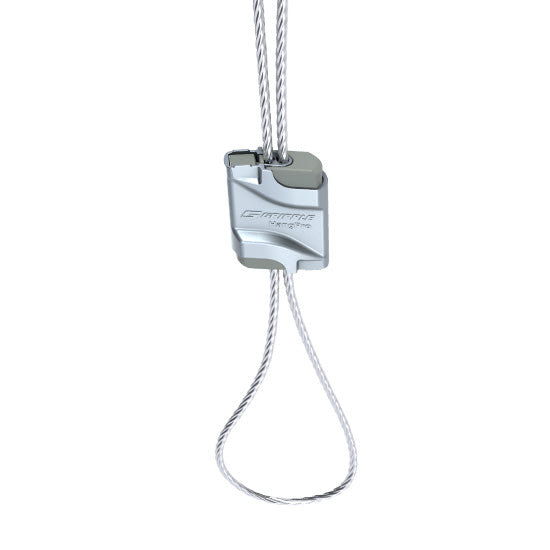

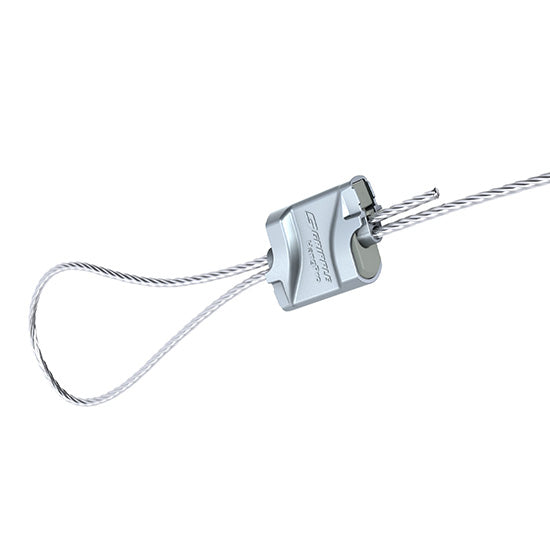

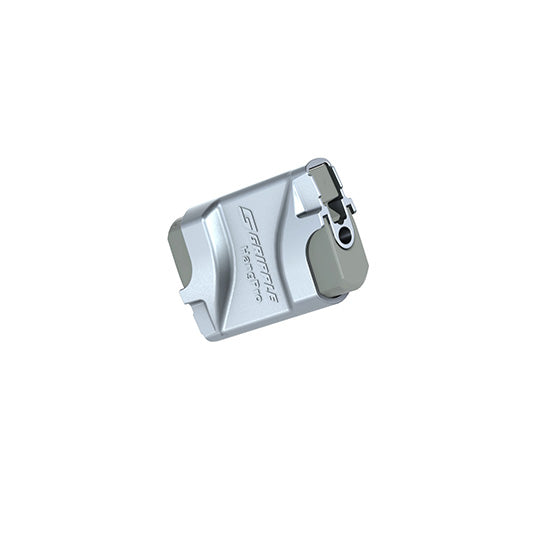

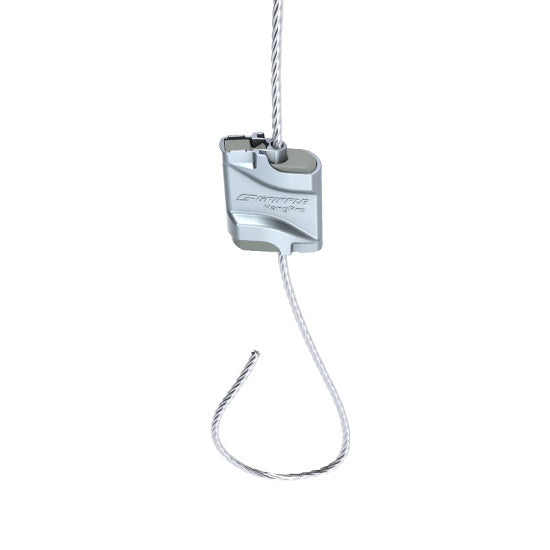

Gripple HangPro 2 Loop
Gripple® HangPro™ Wire Hanger
Fast, adjustable and reliable wire suspension for building services. The Gripple® HangPro™ is a versatile wire hanger designed to make the installation and adjustment of suspended building services faster and easier. Ideal for ductwork, cable baskets, lighting, signage and acoustic panels, HangPro combines high load capacity with simple, tool-free adjustment.
Its ergonomic design and patented wire entry gate help simplify installation while reducing the risk of incorrect wire installation. The hanger can also be adjusted after loading, provided the load is supported during adjustment.
Key Specifications
- Safe Working Load: Up to 55 kg
- Safety Factor: 5:1
- Wire Compatibility: 1.5 mm and 2.0 mm
- Product Variants: HangPro No. 1 and No. 2
- SKU: G-HP2-LG
- Suspension Drop Lengths: 1–10 m, with additional lengths available on request
Available HangPro Sizes
| Variant | Wire Diameter | Load Rating | Safety Factor |
|---|---|---|---|
| HangPro No. 1 | 1.5 mm | 20 kg | 5:1 |
| HangPro No. 2 | 2.0 mm | 55 kg | 5:1 |
Key Benefits
- Quick Installation: Tool-free installation helps contractors install suspended services efficiently.
- Easy Post-Load Adjustment: The hanger can be adjusted after the load has been applied when the load is properly supported.
- High Load Capacity: Supports loads of up to 55 kg, depending on the HangPro variant.
- Patented Wire Entry Gate: Helps guide the wire correctly and minimize the risk of improper installation.
- Traceable: Each hanger features a unique batch number for product traceability.
- Versatile: Suitable for a wide range of mechanical, electrical and architectural applications.
Typical Applications
- Ductwork suspension
- Cable basket and cable containment
- Lighting suspension
- Signage
- Acoustic panels
- Mechanical and electrical building services
How HangPro Works
- Insert the wire rope through the hanger's insertion channel.
- Loop the wire around the service and feed it back through the opposite channel.
- The wire loop locks securely into position.
- To adjust the height, support the load and press the release button while making the required adjustment.
- Ensure a minimum of 100 mm of tail wire exits the hanger.
Ready-to-Install Suspension Kits
HangPro suspension kits can be supplied as a ready-to-install system consisting of the hanger, pre-cut and fused wire, and the appropriate substrate fixing. Standard wire lengths are available from 1 m to 10 m, with other lengths available on request.
Why Choose Gripple HangPro?
HangPro provides a practical alternative to traditional threaded rod and strut suspension methods. Its compact design, tool-free adjustment and high load capacity can help simplify installation while reducing the time and effort required for suspended building services.
Backed by extensive testing and Gripple's technical and engineering support, HangPro is designed for contractors who need a dependable suspension solution for modern construction and building-services installations.
