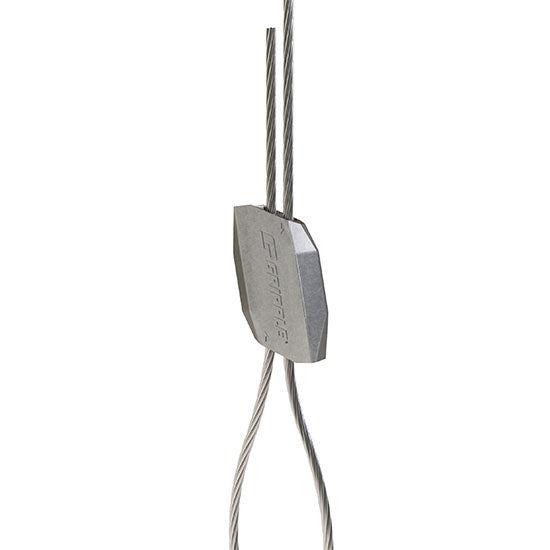

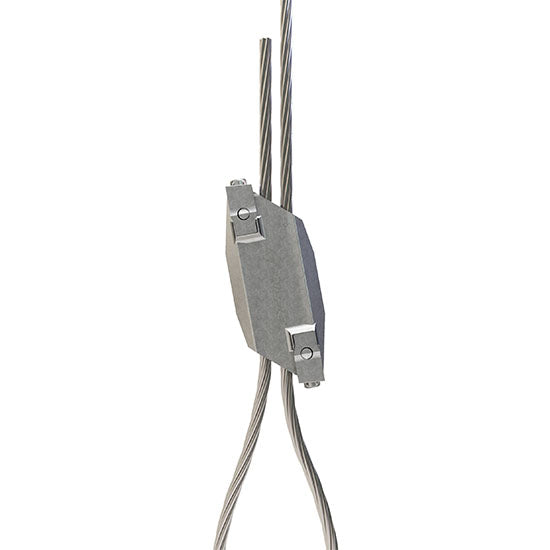

Gripple StandardHanger 4 Loop
Gripple® HangFast™ Cable Suspension System
Fast, flexible and tamper-resistant cable suspension for building services. The Gripple® HangFast™ is a ready-to-install cable suspension system designed to provide a fast and efficient alternative to traditional threaded rod and conventional cable suspension methods.
HangFast features a simple loop-through design that allows cable to be quickly installed around the service being suspended. The integrated locking mechanism provides secure suspension, while the supplied release key allows fast adjustment and re-leveling without specialist tools.
Key Specifications
| Product | Gripple HangFast™ |
| Models | HF1, HF2, HF3, HF4, HF5 |
| Cable Compatibility | 1/16" – 1/4" |
| Maximum Safe Working Load | 715 lbs |
| Safety Factor | 5:1 |
| Standard Suspension Lengths | 5–30 ft |
HangFast Size & Load Guide
| Model | Cable Size | Safe Working Load | Safety Factor |
|---|---|---|---|
| HF1 | 1/16" | 25 lbs | 5:1 |
| HF2 | 5/64" | 100 lbs | 5:1 |
| HF3 | 1/8" | 200 lbs | 5:1 |
| HF4 | 3/16" | 495 lbs | 5:1 |
| HF5 | 1/4" | 715 lbs | 5:1 |
Key Features & Benefits
- Fast Installation: HangFast eliminates the need for cable cutting and threading during installation, helping reduce labor time.
- Simple Loop-Through Design: The twin-entry hanger allows the cable to form a secure suspension loop around the service being supported.
- Tool-Free Adjustment: Suspension height can be quickly adjusted using the supplied Gripple release key.
- Tamper-Resistant: The locking mechanism helps secure the suspension after adjustment.
- Multiple Load Capacities: Five HangFast sizes are available, with Safe Working Loads ranging from 25 lbs to 715 lbs.
- Ready-to-Install: Kits include a pre-cut and fused cable, substrate attachment and HangFast locking hanger.
- Compact & Lightweight: Easier to store, transport and handle than bulky threaded rod and strut systems.
- 5:1 Safety Factor: HangFast products are tested to a 5:1 safety factor.
Typical Applications
How HangFast Works
- Feed the fused end of the cable into one of the HangFast cable entry holes. The hanger grips and locks the cable in position.

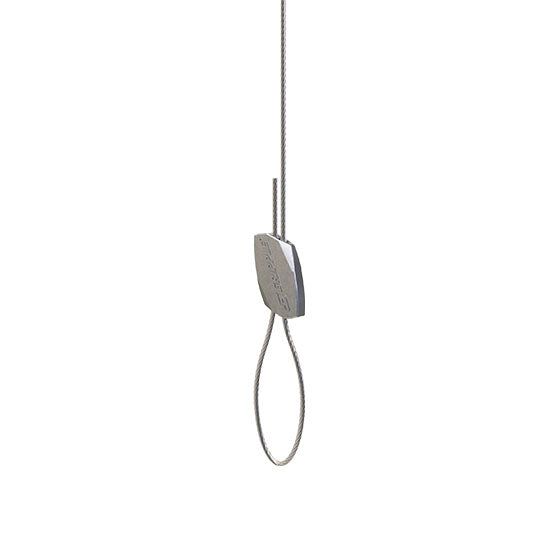

- Pull enough cable through the hanger to create a loop around the object or building service being suspended.
- Feed the cable back through the second entry hole to complete the suspension loop.
- Use the supplied Gripple release key to adjust the suspension height and level the installation.
Faster Suspension. Less Hassle.
Gripple HangFast provides a professional alternative to traditional suspension methods, combining fast installation, simple adjustment and secure locking in one compact system. With five sizes available, HangFast provides a solution for applications ranging from lighter-duty installations to heavy-duty building services.
Ready-to-Install Suspension Kit
HangFast kits are supplied ready to install and consist of three primary components:

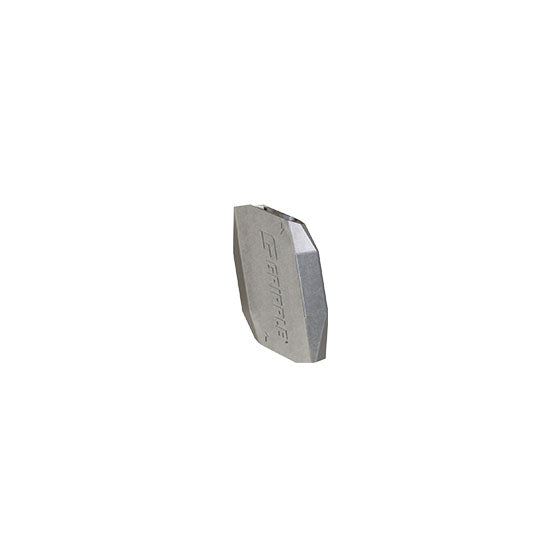

- HangFast locking hanger
- Pre-cut, looped and fused suspension cable
- Selected substrate fixing / end fixing
Standard US suspension drops are available from 5 ft to 30 ft, with additional lengths available on request.
Available Structural Attachments
HangFast suspension kits can be configured with a variety of structural attachments to suit different substrates and installation requirements. Available options vary by HangFast size and application.
Select the appropriate substrate fixing based on the structure, installation conditions and required load capacity.
Product Highlights
- Product: Gripple HangFast™
- Models: HF1, HF2, HF3, HF4 and HF5
- Cable Compatibility: 1/16"–1/4"
- Safe Working Loads: 25–715 lbs
- Safety Factor: 5:1
- Standard Suspension Lengths: 5–30 ft
- Fast loop-through installation
- Tool-free height adjustment
- Tamper-resistant locking mechanism
- Pre-cut and fused cable
- Multiple structural attachment options
- Suitable for mechanical, electrical, lighting and acoustic applications
