Gripple UniGrip 2 Hook

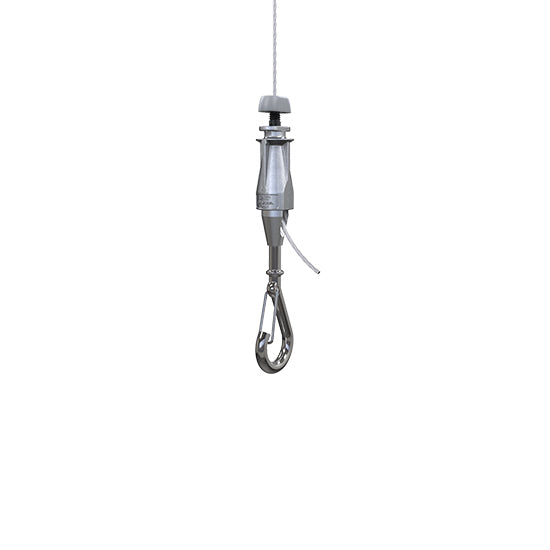

Gripple® UniGrip™ Hook UG2-HK Cable Suspension Kit
Fast, tool-free cable suspension with a pre-fitted snap hook. The Gripple® UniGrip Hook is designed for quick and secure suspension of HVAC equipment, lighting, cable containment and other building services where a simple hook connection is required.
The UniGrip Hook features a pre-attached snap hook that allows quick attachment to eyebolts, holes or suitable connection points on suspended equipment. The compact design provides fast installation and easy height adjustment without the need for traditional threaded rod systems.
Key Specifications
| Product | Gripple UniGrip Hook |
| SKU | G-UG2-HG |
| Cable Diameter | 5/64" |
| Safe Working Load | 120 lbs |
| Standard Suspension Drop Lengths | 5–30 ft |
| End Fixing | Pre-fitted Snap Hook |
Key Features & Benefits
- 120 lb Safe Working Load: Provides a dependable suspension solution for a wide range of building services applications.
- 5/64" Cable: Designed for use with 5/64" suspension cable.
- Pre-Fitted Snap Hook: Quickly attach the suspension system to eyebolts or suitable holes on suspended equipment without additional hook hardware.
- Tool-Free Attachment: The snap hook allows fast connection to compatible suspension points.
- Fast Installation: The UniGrip system eliminates cable cutting and minimizes the need for tools, helping reduce installation time on site.
- Easy Height Adjustment: The release mechanism allows the suspension drop to be adjusted quickly along the cable.
- Lockable Adjustment: Once the desired height has been achieved, the top end cap can be screwed down to help prevent accidental adjustment and tampering.
- Ready-to-Install: The complete suspension kit includes the structural attachment, pre-cut and fused cable, and UniGrip Hook hanger.
Typical Applications
How UniGrip Hook Works
- Feed the suspension cable into the entry channel at the top of the UniGrip Hook and back out through the opposite side. The hanger grips and locks the cable in place.
- Use the pre-fitted snap hook to attach the hanger to a suitable eyebolt, hole or connection point on the suspended equipment.
- Push down the end cap to allow the hanger to be adjusted up or down along the cable.
- Once the desired suspension height has been achieved, screw down the top end cap to help prevent accidental adjustment.
Hooked on Speed and Simplicity
The Gripple UniGrip Hook combines the convenience of a pre-fitted snap hook with fast, adjustable cable suspension. With tool-free connection, easy height adjustment and a 120 lb Safe Working Load, it is an efficient solution for contractors who need to suspend equipment quickly and securely.
Ready-to-Install Suspension Kit
UniGrip Hook kits are supplied ready to install and consist of three primary components:
- UniGrip Hook hanger
- Pre-cut, looped and fused 5/64" cable
- Selected structural/substrate fixing
Standard suspension drops are available from 5 ft to 30 ft, with custom lengths available on request.
Structural Attachment Options
The UniGrip Hook system can be supplied with a range of structural attachments to suit different substrates and fixing points, including Loop, Toggle, Stud, Eyelet, Barrel, Top Hat, Concrete Ceiling Anchor, Channel Nut, Straight Eyelet and Shotfire options.
Select the appropriate structural attachment based on the substrate and installation requirements of your project.
Product Highlights
- Product: Gripple UniGrip Hook
- SKU: G-UG2-HG
- Cable: 5/64"
- Safe Working Load: 120 lbs
- Suspension Drop Lengths: 5–30 ft
- End Fixing: Pre-fitted snap hook
- Fast tool-free attachment
- Easy height adjustment
- Lockable adjustment mechanism
- Pre-cut and fused cable
- Suitable for HVAC, lighting and cable containment applications
