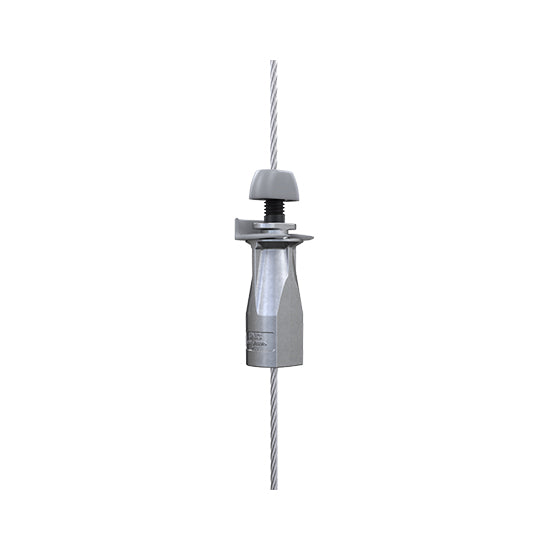

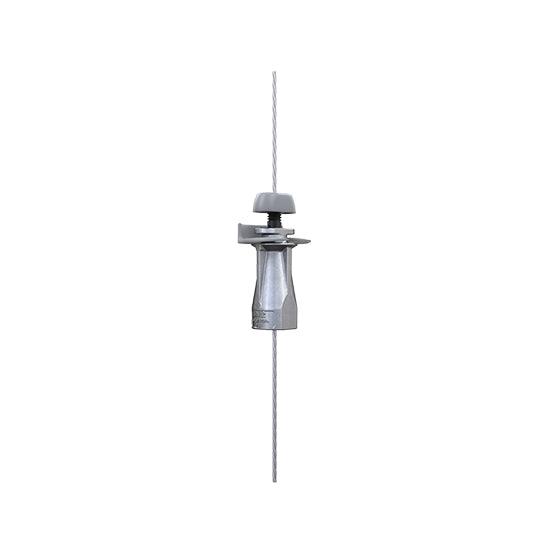

Gripple® UniGrip™ Cable Suspension System
Fast, secure and adjustable wire suspension for building services. The Gripple® UniGrip™ is a versatile cable suspension system designed for suspending HVAC equipment, ductwork, cable containment, lighting, mechanical services and multi-tiered trapeze systems.
UniGrip provides a faster, cleaner alternative to traditional threaded rod suspension. The compact, ready-to-install system combines a UniGrip hanger, pre-cut and fused cable, and a choice of structural attachment for quick installation straight from the box.
Key Specifications
| Product | Gripple UniGrip™ |
| SKU | G-UG2-LG |
| Maximum Safe Working Load | Up to 800 lbs |
| Cable Compatibility | 5/64" – 1/4" |
| Standard Suspension Lengths | 5–30 ft |
UniGrip Size & Load Guide
| UniGrip Size | Cable Size | Safe Working Load | Safety Factor |
|---|---|---|---|
| UniGrip 2 | 5/64" | 120 lbs | 5:1 |
| UniGrip 3 | 1/8" | 240 lbs | 5:1 |
| UniGrip 4 | 3/16" | 550 lbs | 5:1 |
| UniGrip 6 | 1/4" | 800 lbs | 5:1 |
Key Features & Benefits
- Fast Installation: UniGrip systems eliminate cable cutting and require minimal tools, helping reduce installation time compared with traditional threaded rod.
- Tool-Free Height Adjustment: A simple release mechanism allows the suspension height to be adjusted quickly along the cable.
- Lockable Adjustment: Once the desired height is achieved, the top end cap can be screwed down to prevent accidental adjustment and tampering.
- High Load Capacity: The UniGrip range provides Safe Working Loads from 120 lbs to 800 lbs, depending on the selected size.
- Ready-to-Install: Kits include the UniGrip hanger, pre-cut and fused cable, and the selected structural attachment.
- Versatile Suspension: Suitable for direct equipment suspension, ductwork, cable containment, HVAC and multi-tiered trapeze applications.
- Compact Design: The cable suspension system is lightweight and easy to handle, transport and install on site.
Typical Applications

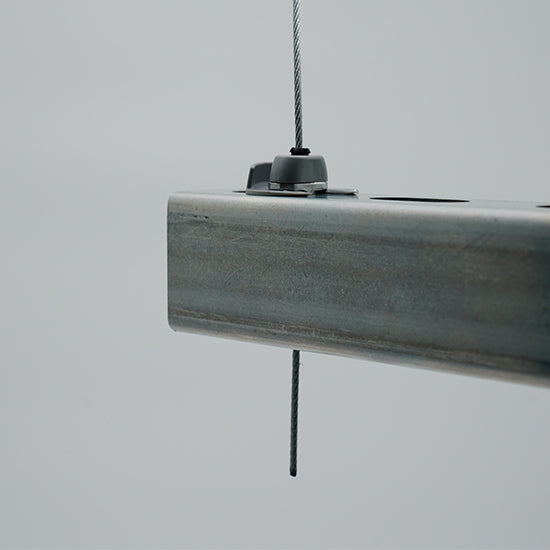

How UniGrip Works
- Connect the selected structural attachment to the building structure, bracket or suspended service.
- Feed the cable into the entry channel at the top of the UniGrip and back out through the opposite side.
- The UniGrip grips and locks the cable in place.
- Push down the end cap to adjust the hanger up or down the cable.
- Once the correct height has been achieved, screw down the top end cap to help prevent accidental adjustment.
A Smarter Alternative to Threaded Rod
Gripple UniGrip provides a fast and versatile cable suspension solution for modern building services installations. With tool-free adjustment, multiple load capacities and a wide range of structural attachments, UniGrip helps contractors install suspended services faster and with less equipment on site.
Ready-to-Install Suspension Kit
UniGrip suspension kits are supplied ready to install and consist of three main components:
- UniGrip hanger
- Pre-cut and fused cable
- Selected structural/substrate fixing
Standard suspension cable lengths are available from 5 ft to 30 ft, with additional lengths available on request.
Structural Attachment Options
UniGrip is available with a wide range of structural attachments to suit different installation requirements and substrates.
- Loop
- Stud
- 45° Eyelet
- 90° Eyelet
- Concrete Ceiling Anchor
- Channel Nut
- Shotfire
- Straight Eyelet
- And other UniGrip fixing configurations
Product Highlights
- Gripple UniGrip™ cable suspension system
- Models: UG2, UG3, UG4 and UG6
- Safe Working Loads from 120–800 lbs
- 5:1 safety factor
- 5/64"–1/4" cable compatibility
- 5–30 ft standard suspension lengths
- Pre-cut and fused cable
- Tool-free height adjustment
- Lockable adjustment mechanism
- Multiple structural attachment options
- Suitable for HVAC, ductwork, cable containment and building services
