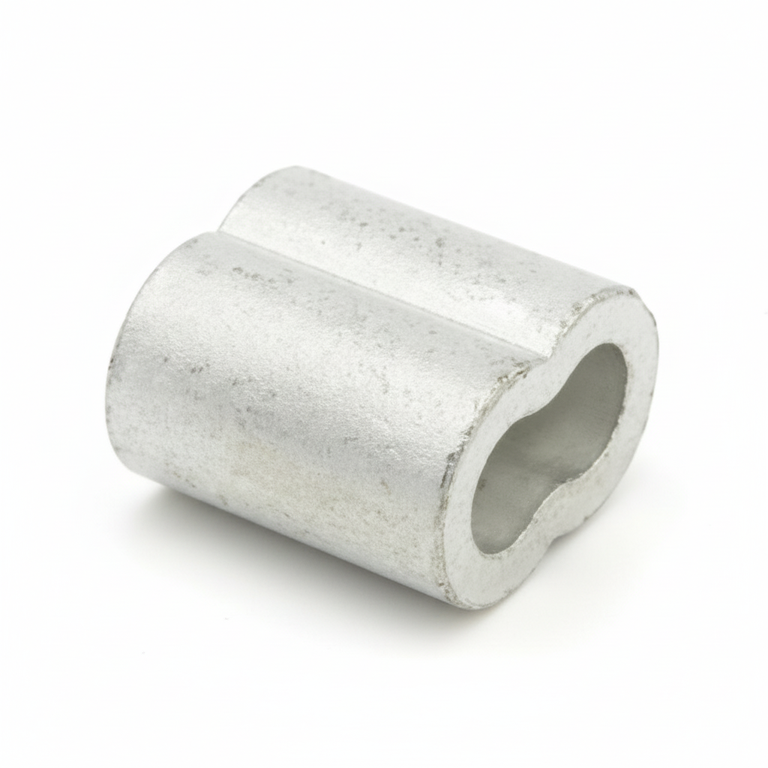

Tin Plated Copper Duplex Sleeves - (SOLD IN PACKS)

Tin Plated Copper Duplex Sleeves - (SOLD IN PACKS)

$18.99

Free shipping on all orders of $150, Under 50LBS

Availability:
In stock
SKU:
S-13-002-125K

  • Amazon
  • American Express
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Finish : Tin Plated

Height : 2

Length : 1

Material : Copper

Specs : MS-51844

Type : Duplex Sleeves

Width : 2

Our tin plated swage sleeves are manufactured to U.S. Military standard MS-51844. Tin plating of our swage sleeves provides corrosion protection and a flat, low sheen, non-reflective finish. Tin plated swage sleeves provide 100 percent of wire strength when machine swaged; 90 percent when hand swaged.



SKU Diameter Qty/Pkg Spec
S-13-000 1/32" N/A MS-51844-80
S-13-001-150K 3/64" 150 MS-51844-81
S-13-002-125K 1/16" 125 MS-51844-82
S-13-003-120K 3/32" 120 MS-51844-83
S-13-004-50K 1/8" 50 MS-51844-84
S-13-005-25K 5/32" 25 MS-51844-85
S-13-006-15K 3/16" 15 MS-51844-86
S-13-007 7/32" N/A MS-51844-87
S-13-008-10K 1/4" 10 MS-51844-88
S-13-010-10K 5/16" 10 MS-51844-89
S-13-012-5K 3/8" 5 MS-51844-90
S-13-014 7/16" N/A MS-51844-91
S-13-016-5K 1/2" 5 MS-51844-92
