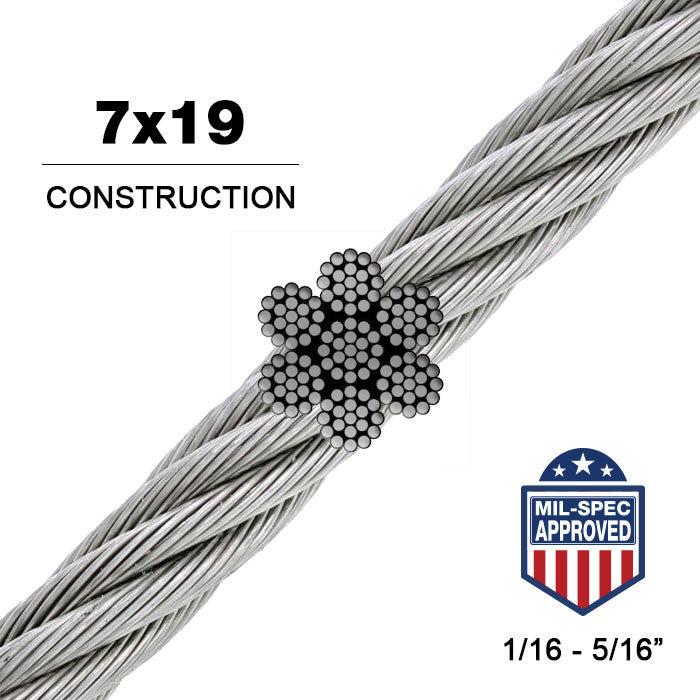

7x19 | 304 Stainless Steel Wire Rope (Aircraft Cable) MIL-DTL 83420 - Each Unit is 50 Foot
$199.98
Regular price
Unit price
Translation missing: en.general.accessibility.unit_price_separator
Availability:
In stock
SKU:
W-12-102MS
SwageRight™ creates quality stainless steel wire rope in a 7x19 diameter that is best suited for rigging, lifting, towing, and heavy construction applications. This steel wire rope is also complaint to stringent MIL-SPEC MIL-DTL 83420 standards.
Need help with your selection? Take a look at our comprehensive guide to buying wire rope
| SKU | Diameter | WLL | Break Strength |
|---|---|---|---|
| W-12-102MS | 1/16" | 96 lbs | 480 lbs |
| W-12-103MS | 3/32" | 184 lbs | 920 lbs |
| W-12-104MS | 1/8" | 352 lbs | 1,760 lbs |
| W-12-105MS | 5/32" | 480 lbs | 2,400 lbs |
| W-12-106MS | 3/16" | 740 lbs | 3,700 lbs |
| W-12-108MS | 1/4" | 1,280 lbs | 6,400 lbs |
| W-12-110MS | 5/16" | 1,800 lbs | 9,000 lbs |
*WLL is approximately 20% of average break strength which allows a 5:1 design factor.
