7x19 Nylon Coated Galvanized Steel Wire Rope | MIL-DTL-83420 | SwageRight
Regular price
$458.98
Unit price
Translation missing: en.general.accessibility.unit_price_separator
Availability:
In stock
SKU:
W-31-123MS-100FT
Premium Nylon-Coated Galvanized Steel Wire Rope
SwageRight™ 7x19 nylon-coated galvanized steel wire rope delivers exceptional performance for demanding rigging, lifting, towing, and heavy construction applications. Engineered to meet stringent MIL-DTL-83420 military specifications, this aircraft-grade cable combines superior strength with enhanced durability.
Key Features
- MIL-SPEC Certified: Compliant with MIL-DTL-83420 standards for military-grade reliability
- Dual Protection: Galvanized steel core resists corrosion while nylon coating provides abrasion resistance

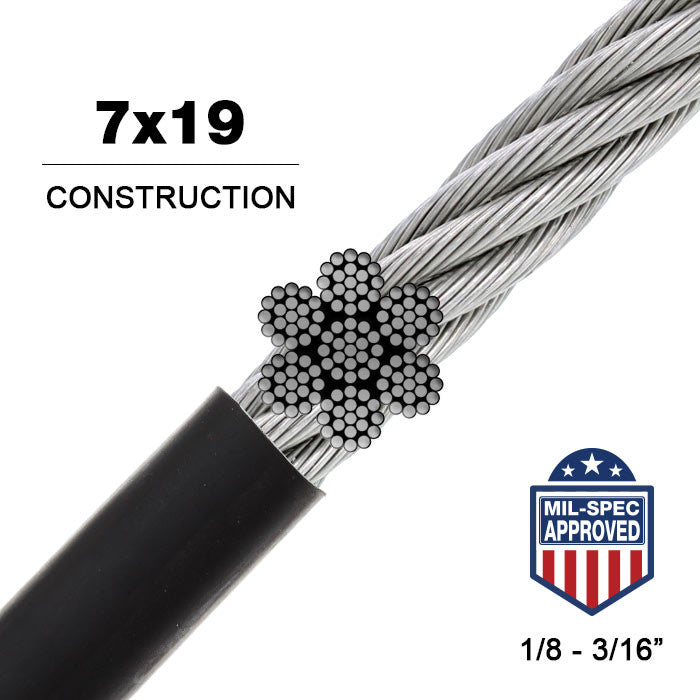

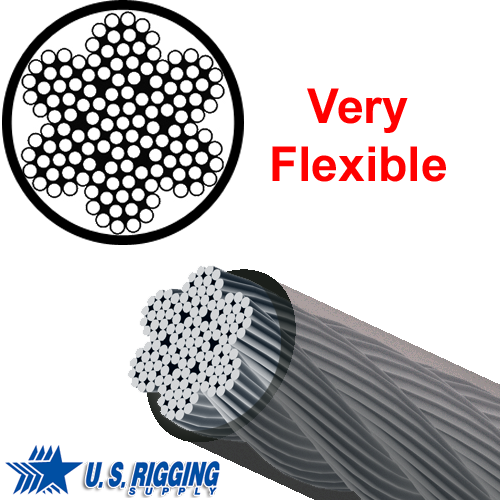

- 7x19 Construction: Optimal balance of flexibility and strength for versatile applications
- Extreme Condition Ready: Performs reliably in harsh marine, industrial, and outdoor environments
- Available in Clear or Black: Choose the coating color that suits your application
Applications
Ideal for marine rigging, arborist work, construction lifting, industrial towing, and safety-critical applications where strength and durability are non-negotiable.
Specifications
| SKU | Diameter | WLL | Break Strength | Qty/Pkg | Jacket Color |
|---|---|---|---|---|---|
| W-31-123MS | 1/16" I.D. | 3/32" O.D. | 96 lbs | 480 lbs | 100' | Clear |
| W-31-134MS | 3/32" I.D. | 1/8" O.D. | 200 lbs | 1,000 lbs | N/A | Clear |
| W-31-146MS-100FT | 1/8" I.D. | 3/16" O.D. | 400 lbs | 2,000 lbs | 100' | Clear |
| W-31-168MS | 3/16" I.D. | 1/4" O.D. | 840 lbs | 4,200 lbs | N/A | Clear |
| W-31-10810MS | 1/4" I.D. | 5/16" O.D. | 1,400 lbs | 7,000 lbs | N/A | Clear |
| W-31-446MS-100FT | 1/8" I.D. | 3/16" O.D. | 400 lbs | 2,000 lbs | 100' | Black |
| W-31-468MS-100FT | 3/16" I.D. | 1/4" O.D. | 840 lbs | 4,200 lbs | 100' | Black |
*WLL is approximately 20% of average break strength which allows a 5:1 design factor.
