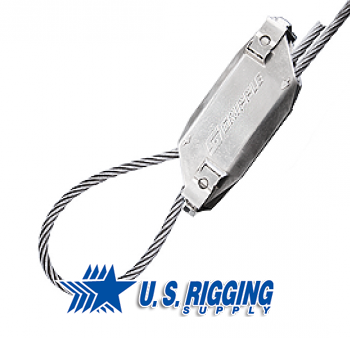

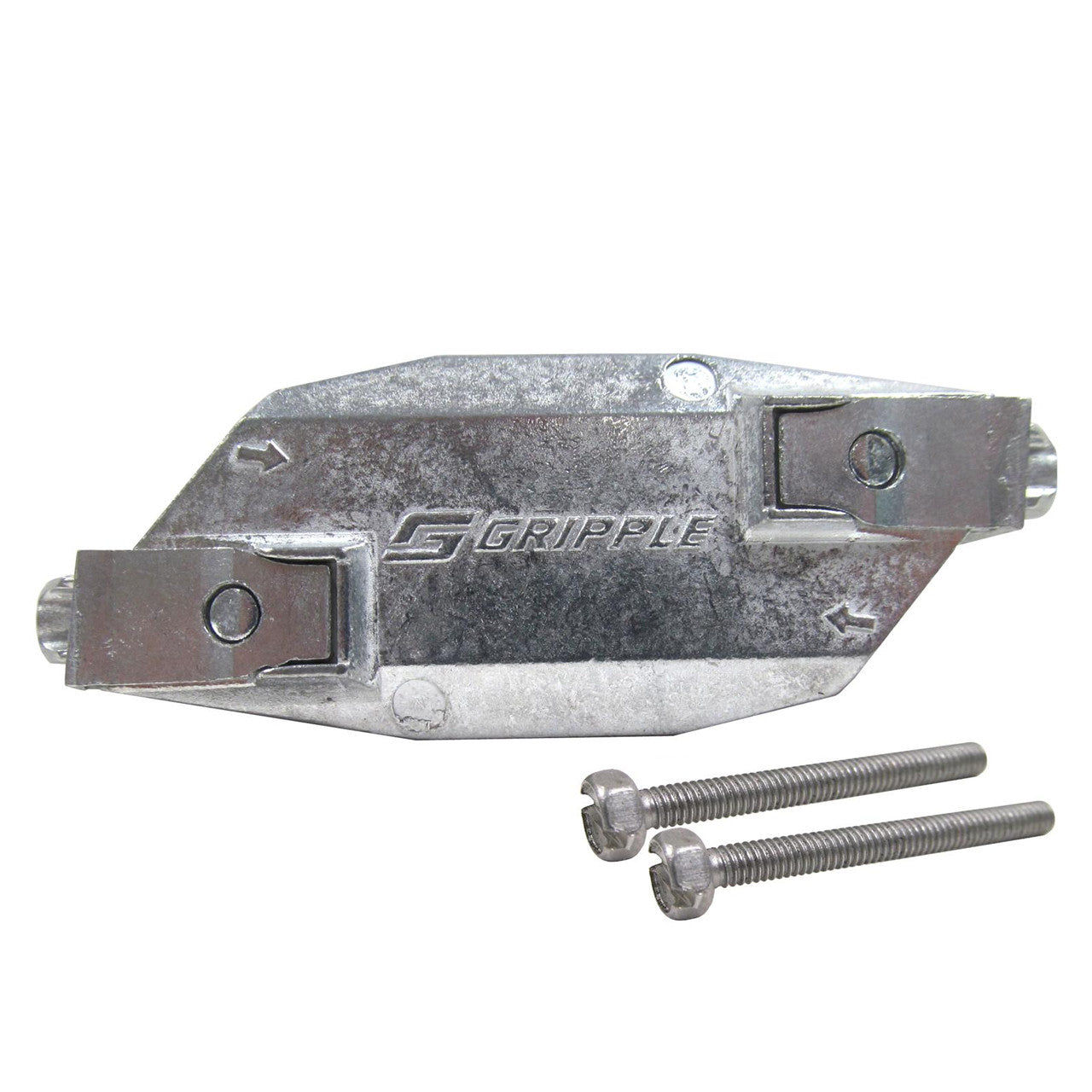

Gripple Lockable Wire Rope Grip 1/8" (3mm) - 330 lbs MLL - Professional Suspension System
Gripple Lockable Wire Rope Grip for 1/8" (3mm) Wire Rope - 330 lbs Maximum Locking Load
The Gripple Lockable Wire Rope Grip is an innovative, highly efficient fastening system for terminating and tensioning wire rope in suspension and bracing applications. This professional-grade device uses specialized locking screws to secure an internal wedge, creating a reliable, tool-free connection that grips wire rope securely while allowing easy adjustment. Ideal for suspending ductwork, cable trays, piping, and other overhead installations, Gripple systems significantly reduce installation time compared to traditional methods.
Key Features
- 330 lbs Maximum Locking Load (MLL): Rated capacity for safe suspension applications
- 4:1 Safety Factor: Built-in safety margin for reliable performance
- Lockable Design: Specialized locking screws secure wedge in place
- Tool-Free Operation: No tools required for installation or adjustment
- For 1/8" (3mm) Wire Rope: Designed specifically for 1/8" diameter cable
- 7x7 Steel-Core Construction: Use with 7x7 steel-core wire rope for optimal performance
- Single-Use Fastener: Permanent installation for long-term reliability
- Professional Grade: Trusted by contractors and installers worldwide
How Gripple Works
The Gripple Lockable Wire Rope Grip uses an internal cam and wedge mechanism that allows wire rope to be pulled through in one direction (tightening) while preventing movement in the opposite direction. The specialized locking screws secure the wedge, ensuring the grip maintains tension even with minimal load application. This creates a secure, adjustable suspension point without the need for traditional turnbuckles, wire rope clips, or other hardware.
Applications
- HVAC ductwork suspension
- Cable tray support systems
- Pipe hangers and supports
- Electrical conduit suspension
- Lighting and equipment hanging
- Ceiling grid support
- Mechanical system bracing
- Static and dynamic load suspension
- Light-duty overhead installations
Advantages Over Traditional Methods
- Faster Installation: 50-70% faster than traditional wire rope termination methods
- Labor Savings: Significantly reduces installation time and labor costs
- No Tools Required: Eliminates need for wrenches, cutters, and crimping tools
- Adjustable: Easy to adjust tension after installation
- Consistent Quality: Uniform installation regardless of installer skill level
- Clean Installation: No cut wire ends or excess hardware
- Reliable Performance: Proven technology trusted by professionals
Technical Specifications
- Wire Rope Diameter: 1/8" (3mm)
- Maximum Locking Load (MLL): 330 lbs (150 kg)
- Safety Factor: 4:1
- Wire Rope Type: 7x7 steel-core construction recommended
- Installation Type: Single-use, permanent fastener
- Locking Mechanism: Specialized locking screws secure wedge
- Manufacturer: Gripple
Installation Guidelines
- Thread 1/8" (3mm) wire rope (7x7 construction) through the Gripple device
- Attach wire rope to anchor point and load
- Pull wire through Gripple to desired tension
- Locking mechanism automatically secures wire in place
- Tighten locking screws to secure wedge for minimal load applications
- Trim excess wire if desired (optional)
Important: Use only with 7x7 steel-core wire rope in 1/8" (3mm) diameter. Never exceed the 330 lb Maximum Locking Load. Ensure anchor points can support the intended loads. Follow all applicable building codes and manufacturer installation instructions.
Why Choose Gripple Systems?
Gripple has revolutionized wire rope suspension with innovative, tool-free fastening systems that save time and labor while providing reliable, professional results. Trusted by contractors, installers, and engineers worldwide, Gripple products offer a superior alternative to traditional suspension methods. The lockable design ensures secure, permanent installations for both static and dynamic loads.
Compatibility
This Gripple Lockable Wire Rope Grip is designed specifically for 1/8" (3mm) diameter wire rope with 7x7 steel-core construction. Using the correct wire rope diameter and construction is critical for proper performance and safety. Gripple offers various sizes for different wire rope diameters - ensure you select the correct size for your application.
