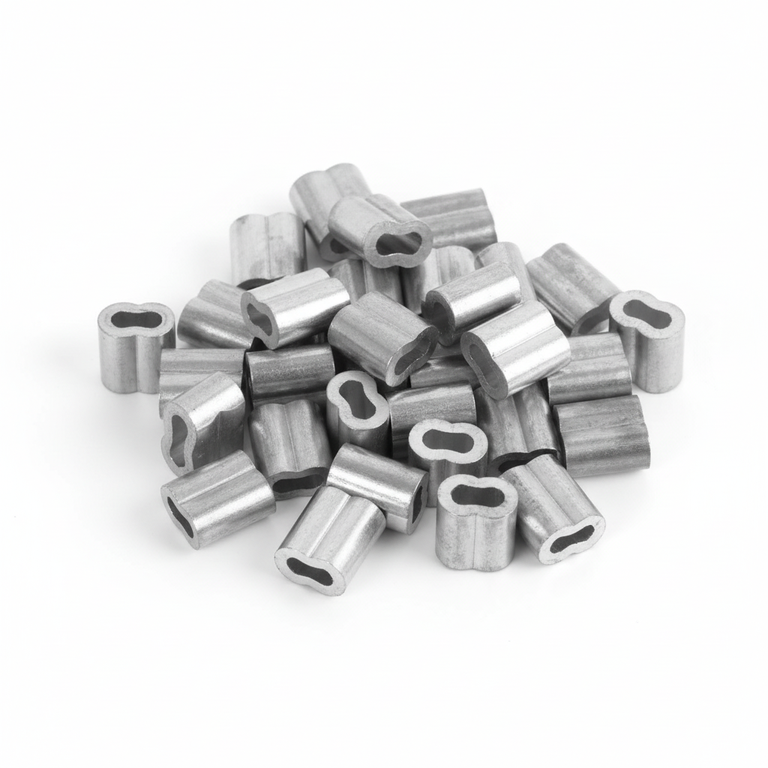

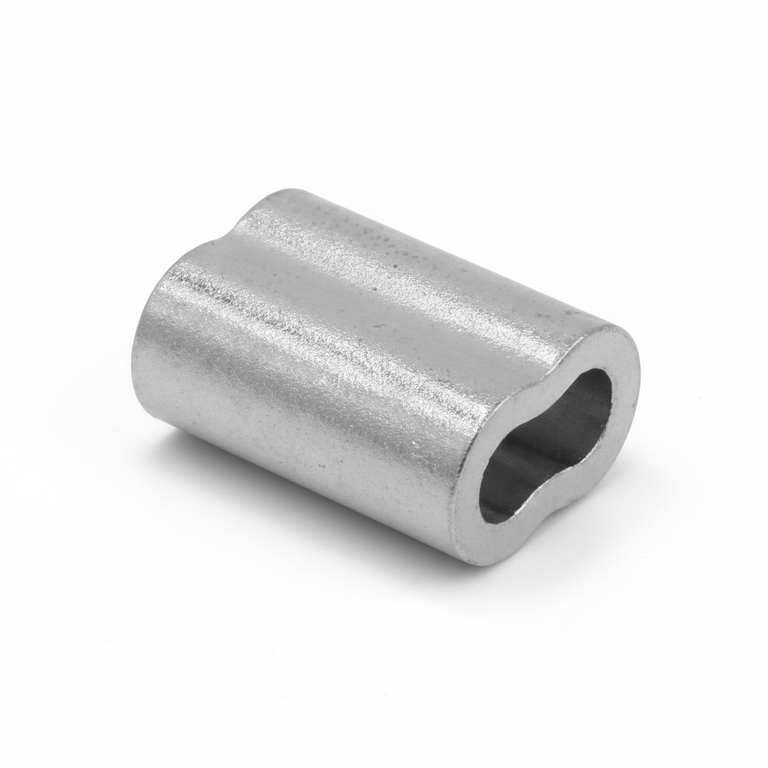

SwageRight Zinc Plated Copper Duplex Sleeves - MS-51844 Oval Ferrules
The SwageRight Zinc Plated Copper Duplex Sleeves deliver professional-grade wire rope terminations with full MS-51844 military specification compliance. Engineered for critical rigging applications where corrosion resistance and structural integrity are essential, these oval ferrules provide secure, permanent connections for wire rope assemblies in marine, industrial, and architectural applications.
Key Features
- MS-51844 Military Specification Compliant: Meets rigorous military standards for oval sleeves and ferrules, ensuring consistent quality and performance
- Zinc Plated Copper Construction: Superior corrosion resistance with excellent conductivity and optimal swaging characteristics for reliable compression
- Duplex Design: Dual-compression geometry creates secure, permanent wire rope terminations that resist slippage and failure
- Marine-Grade Performance: Proven reliability in harsh saltwater environments and demanding outdoor applications
- Multiple Size Options: Available in 13 sizes from 1/32" to 1/2" diameter to match specific wire rope requirements
- Bulk Pack Quantities: Sold in economical packs sized for professional use (4 to 225 pieces per pack depending on size)
Available Sizes & Specifications
| SKU | Diameter | Qty/Pkg | MS Spec |
|---|---|---|---|
| S-11-000-225K | 1/32" | 225 | MS-51844-20 |
| S-11-001-175K | 3/64" | 175 | MS-51844-21 |
| S-11-002-175K | 1/16" | 175 | MS-51844-22 |
| S-11-003-100K | 3/32" | 100 | MS-51844-23 |
| S-11-004-50K | 1/8" | 50 | MS-51844-24 |
| S-11-005-30K | 5/32" | 30 | MS-51844-25 |
| S-11-006-20K | 3/16" | 20 | MS-51844-26 |
| S-11-007-20K | 7/32" | 20 | MS-51844-27 |
| S-11-008-15K | 1/4" | 15 | MS-51844-28 |
| S-11-010-10K | 5/16" | 10 | MS-51844-29 |
| S-11-012-15K | 3/8" | 15 | MS-51844-30 |
| S-11-014-5K | 7/16" | 5 | MS-51844-31 |
| S-11-016-4K | 1/2" | 4 | MS-51844-32 |
Recommended Applications
Marine Rigging
- Standing rigging and lifeline terminations
- Cable railing systems for boats and docks
- Anchor rode and mooring line assemblies
Industrial & Commercial
- Wire rope slings and lifting assemblies
- Overhead crane and hoist systems
- Material handling and load securement
Arborist & Tree Work
- Tree rigging and support cable systems
- Permanent anchor point installations
- Cable bracing for structural support
Architectural & Structural
- Cable railing and guardrail systems
- Tension cable assemblies for awnings and canopies
- Decorative and functional cable installations
Installation Requirements
Proper installation requires appropriate swaging tools matched to the sleeve diameter. Use a calibrated swaging tool or hydraulic press to compress the sleeve onto the wire rope, following manufacturer guidelines for compression ratios and die selection. Always verify proper swage compression using go/no-go gauges to ensure code-compliant, safe installations. Consult applicable industry standards (ASTM, AASHTO, or local building codes) for specific application requirements.
Important: Select the correct sleeve diameter to match your wire rope size. Improper sizing or installation can result in reduced holding strength and potential failure. Each pack contains multiple sleeves for professional-volume applications.
